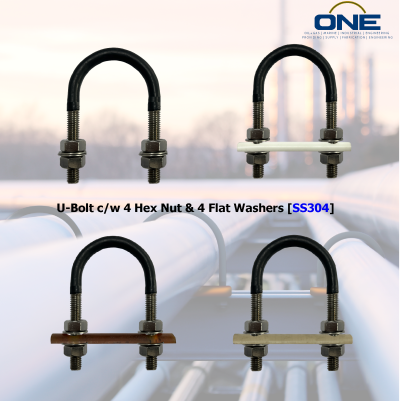

U-Bolt c/w 4 Hex Nut & 4 Flat Washers [SS304]

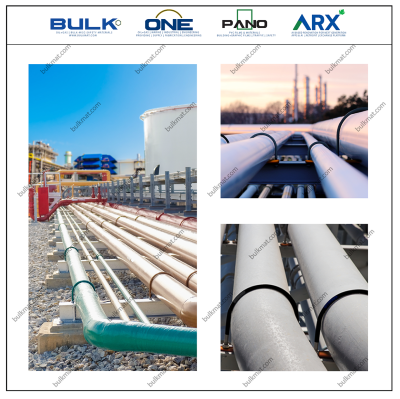

U-Bolt & D-ROD are engineered to cater to a wide range of pipe support and structural applications, including Bolting and Insulation. Recognized for its strength, resistance to corrosion, use of high-quality materials, and adherence to international standards
100 THB
- 13,560 THB
120 THB
100 THB
Member
0 THB
Member
0 THB

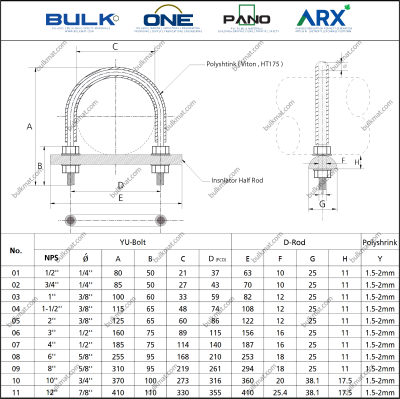

Size
U-bolt Insulator
Insulator Rod
Quantity
Product description
Materials & Accessories
1.U-Bolt – Stainless Steel 304 (SS304)Key Features:
- Standard grade, suitable for general use
- Good corrosion resistance (except in high-chloride environments)
- Cost-effective
2. Polyshrink (Heat Shrink Tube) Plastic sleeve that shrinks when heated.
- HT175 (PVDF):
- Heat resistant (up to 175°C)
- Chemical resistant
- Viton 200 (FKM):
- Higher heat resistance (up to 200°C),
- Excellent chemical resistance
- Flexible, impact
3. Special Insulator Rods
Purpose: To insulate between the pipe and support, providing electrical insulation or load distribution.
- PTFE (Teflon):
- Excellent electrical insulation
- Highly chemical resistant
- Withstands extreme temperatures
- Limitation: Not mechanically strong, low compressive strength
- PEI:
- Well-balanced properties
- Good insulator
- Mechanically strong
- Heat resistant (~170°C)
- Good chemical resistance
- PEEK:
- Highest strength and durability
- Wear-resistant
- Very high heat resistance (up to 250°C)
- Excellent chemical resistance
