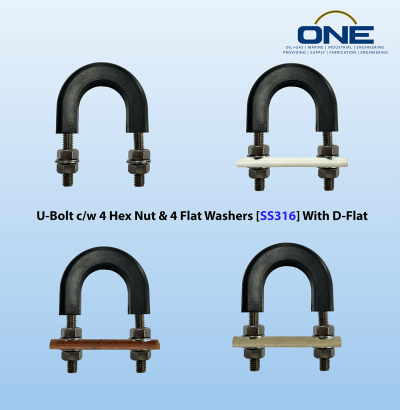

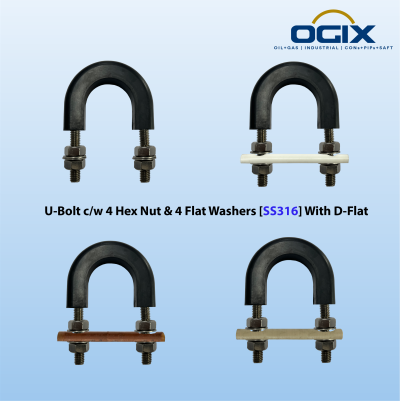

U-Bolt c/w 4 Hex Nut & 4 Flat Washers [SS316] With D-Flat

U-Bolt & D-ROD Information

           U-Bolt & D-ROD are engineered to cater to a wide range of pipe support and structural applications, including Bolting and Insulation. Recognized for its strength, resistance to corrosion, use of high-quality materials, and adherence to international standards, they also precisely tailor materials for extra requirements.

U-Bolt Types  Stainless Steel 316 (SS316) :

• Key Features: Better corrosion resistance than SS304, especially against chemicals and seawater (due to molybdenum content), highly durable in corrosive environments

• Recommended For Marine applications, coastal areas, chemical plants, pharmaceutical industry (higher cost than SS304)

Pipe Protection Sleeves D-Profile Rubber (D-Flat)

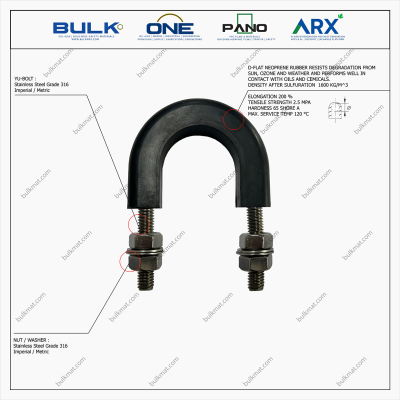

• Neoprene Rubber: Good balance, resistant to weather/ozone/seawater, moderate resistance to oil and chemicals (~100/120°C)

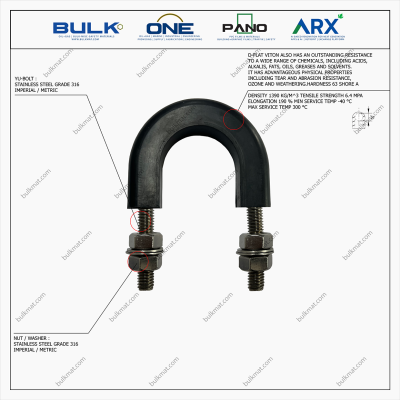

• Viton Rubber (FKM): High-performance, wide chemical resistance, high temperature tolerance (~204/230°C), durable and long-lasting

Special Insulator Rods (Sold Separately) :

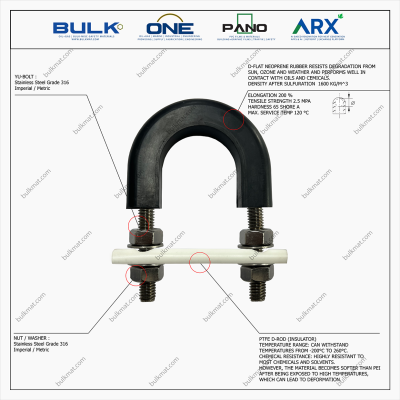

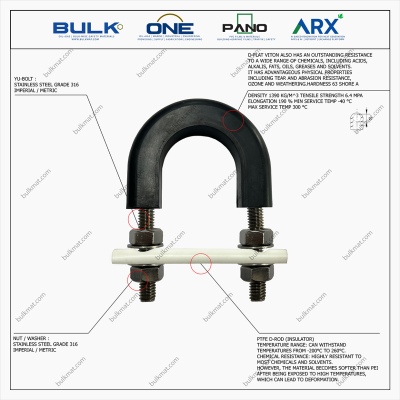

• PTFE (Teflon) :
    Key Features : Excellent electrical insulation, highly chemical resistant, withstands extreme temperatures
    Limitation : Not mechanically strong, low compressive strength

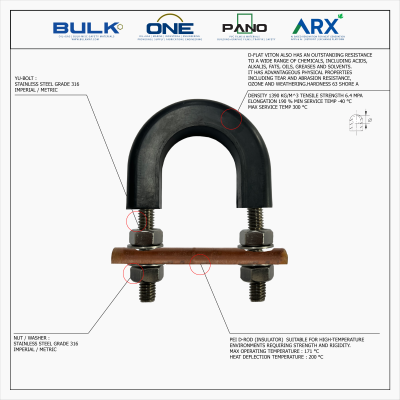

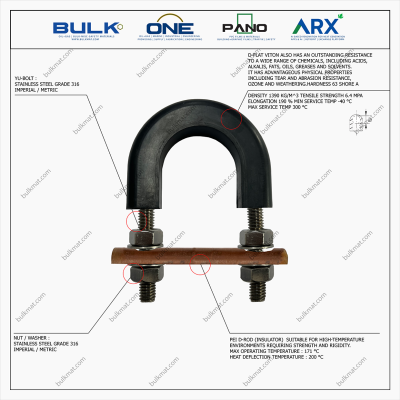

• PEI :
    Key Features : Well-balanced properties, good insulator, mechanically strong, heat resistant (~170°C), good chemical resistance

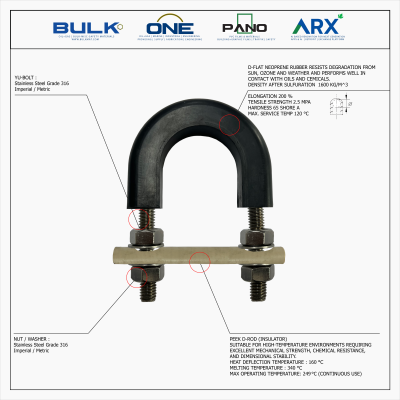

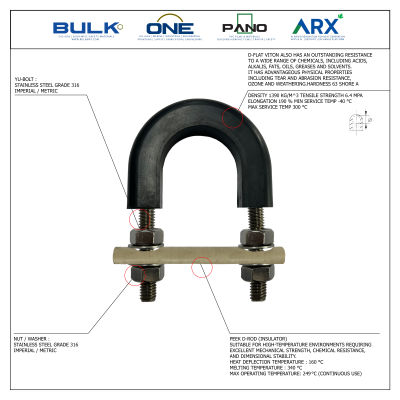

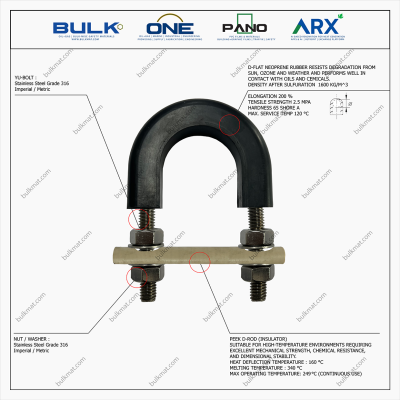

• PEEK :
  Key Features : Highest strength and durability, wear-resistant, very high heat resistance (up to 250°C), excellent chemical resistance
