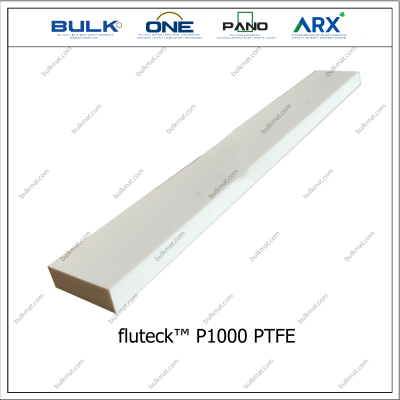

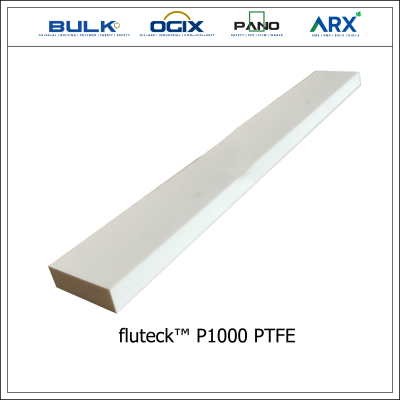

PTFE Flat Bar (fluteck)

fluteck P1000 PTFE Standard Grade

fluteck P1000 is a 100% virgin PTFE standard grade engineered for components requiring stable mechanical, thermal, and electrical performance.

Key Technical Data

• Specific Gravity:  2.130 2.190 g/cm³
• Tensile Strength:  20 MPa
• Elongation:  200%
• Hardness:  54 Shore D
• Service Temperature:  -100°C to +250°C (continuous)
• Static Friction Coefficient:  0.08 0.10
• Dynamic Friction Coefficient:  0.06 0.08
• Dielectric Strength:  30 kV/mm
• Volume Resistivity:  10¹⁸ Ohm·cm
• Water Absorption:  0.01%
• Flammability:  UL94 V-0

The material offers chemical inertness against most industrial chemicals and solvents, low friction behavior for sliding applications, and high electrical insulation performance.

Compliance & Certifications

• FDA (21 CFR 177.1550)
• EU 1935/2004
• NSF/ANSI 61
• WRAS
• ACS
• KTW

Suitable for chemical processing, electrical insulation, sealing systems, oxygen service, and high-performance mechanical components.
