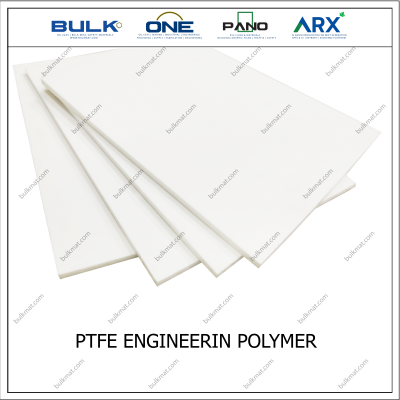

PTFE Sheet
400 THB - 4,000 THB
Quantity
Short Description
"PTFE Sheet" is a 100% pure material with low friction and resistance to temperatures from -160°C to +280°C, ideal for chemical and high-heat industrial applications.
Wishlist
Compare
Product description
PTFE Sheet & Rod (100% Virgin PTFE)
Key Benefit:
- Suitable for Indusrtrial and Process : Oil and Gas, Food Processing, Pharmacutical
- Resistance to : Chemicals (Excellent), Acids & Alkalis, Solvents, UV, Weather, Moisture
- Standard : -
With a friction coefficient of 0.07, PTFE provides low sliding resistance for mechanical components. Its operating temperature range from -160°C to +280°C allows use in cryogenic and high-temperature environments. Dielectric strength 60 KV/mm makes it suitable for electrical insulation applications.
Technical Specifications
- PTFE Content: 100%
- Density: 2.1 2.3 g/cm³
- Sheet Density: 2.25 g/cm³
- Tensile Strength: 200 kg/cm²
- Elongation at Break: 250%
- Hardness: Shore D 5565
- Coefficient of Friction: 0.07
- Service Temperature Range: -160°C to +280°C
- Thermal Conductivity: 0.21 KC/m·h
- Dielectric Loss (10 cycle): 2.5 × 10
- Dielectric Strength (DC): 60 KV/mm
- Combustibility: Non-combustible
Warranty
- Returns are accepted within 5 days after delivery for products that are unused and in original condition
- Refunds will be processed within 7–15 days after the returned item is received
- Items damaged during transportation will be replaced
- Shipping costs for returns or exchanges may be borne by the customer or reviewed on a case-by-case basis
Material Certificate
- LOC (Letter of Compliance) is provided with every order
- MTC 3.1 (Mill Test Certificate) can be provided for qualified orders or upon request
