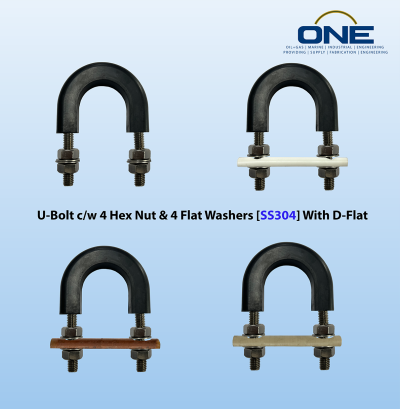

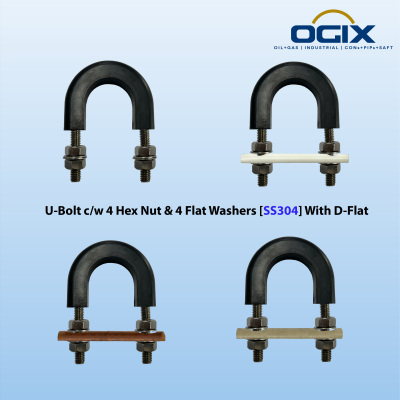

U-Bolt c/w 4 Hex Nuts & 4 Flat Washers [SS304] With D-Flat

U-Bolt & D-ROD Information

Key Benefit:

• Suitable for Indusrtrial and Process : Oil and Gas, Food Processing, Pharmacutical
• Resistance to : Oil Spill, Mild Acid, UV, Rain
• Standard : SS304, ASTM A193, ASTM A194, ASTM F436, ASTM D638, ASTM D790, ASTM D695, ASTM D792, ASTM D648, ASTM D149, UL 94

Material Composition
U-Bolt Types  Stainless Steel 304 (SS304) :

• Stainless Steel SS304

Pipe Protection Sleeves D-Profile Rubber (D-Flat) :

• Neoprene Rubber: Good balance, resistant to weather/ozone/seawater, moderate resistance to oil and chemicals (~100/120°C)

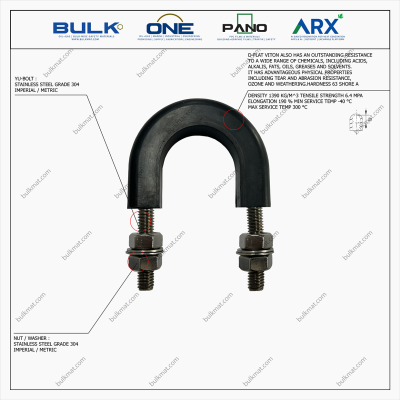

• Viton Rubber (FKM): High-performance, wide chemical resistance, high temperature tolerance (~204/230°C), durable and long-lasting

Special Insulator Rods :

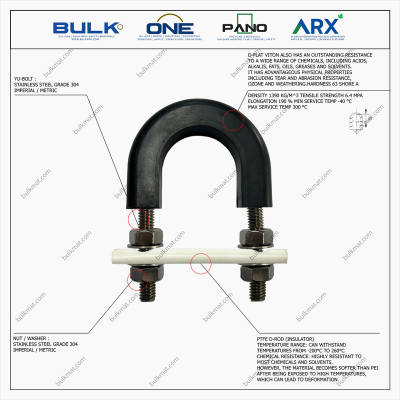

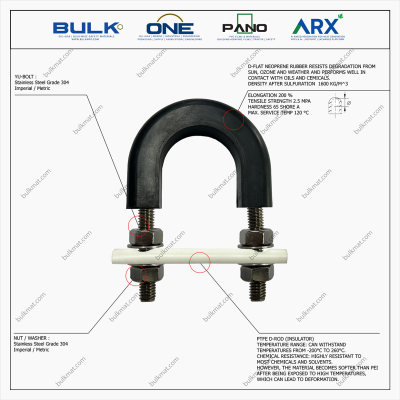

• PTFE (Teflon) : Excellent electrical insulation, highly chemical resistant
  • Temperature : Operating 260°C / Maximum 335°C
  • Tensile Strength : 3,900 psi

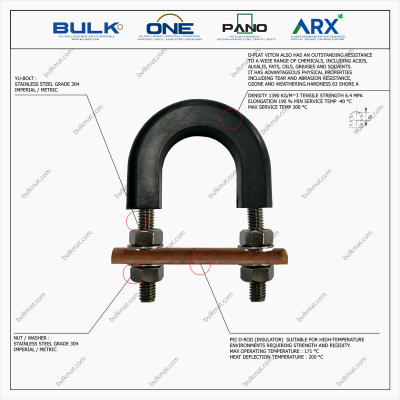

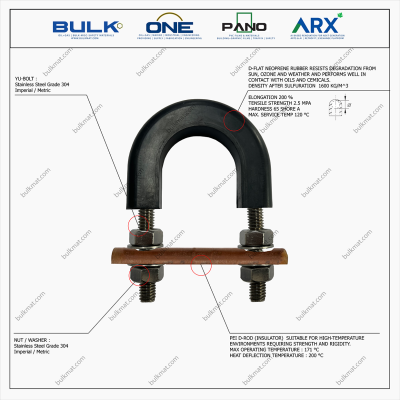

• PEI : Good chemical resistance and Heat resistance
  • Temperature : Operating 171°C / Maximum 200°C
  • Tensile Strength : 15,200 psi

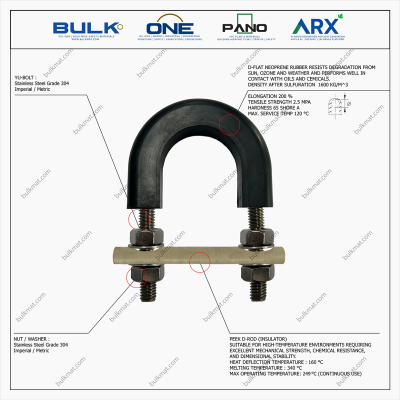

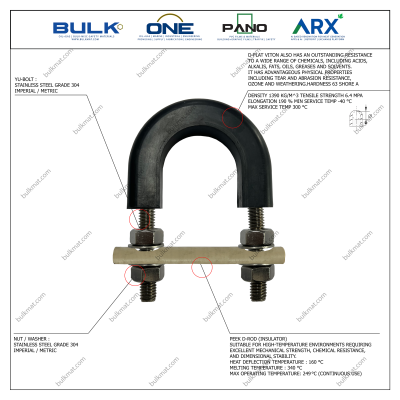

• PEEK : Highest strength and durability, wear-resistant, very high heat resistance, excellent chemical resistance
  • Temperature : Operating 249°C / Maximum 340°C
  • Tensile Strength : 16,000 psi

Warranty

• Returns are accepted within 5 days after delivery for products that are unused and in original condition
• Refunds will be processed within 7–15 days after the returned item is received
• Items damaged during transportation will be replaced
• Shipping costs for returns or exchanges may be borne by the customer or reviewed on a case-by-case basis

Material Certificate

• LOC (Letter of Compliance) is provided with every order
• MTC 3.1 (Mill Test Certificate) can be provided for qualified orders or upon request
